Impact crusher

Your position: HOME>PRODUCT>Stone crushing Item > Impact crusher

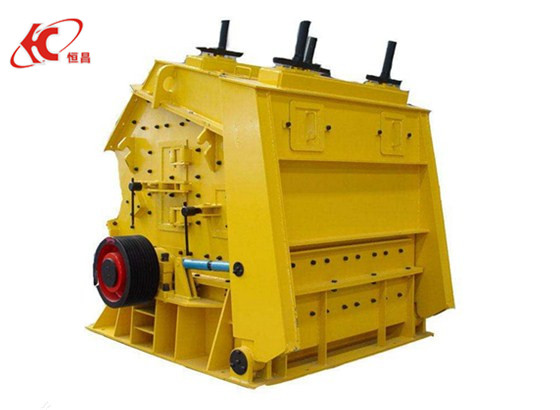

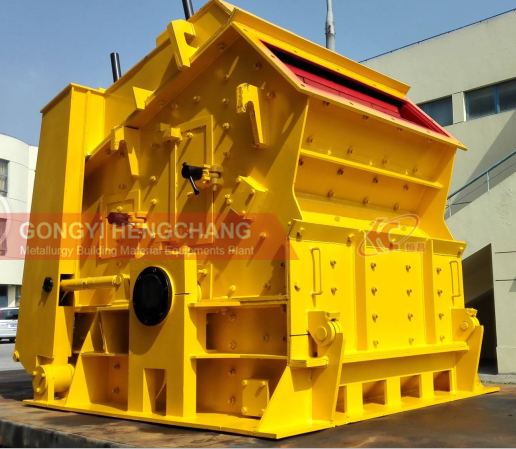

Impact crusher

[Feed size]: 0-500mm

[Production capacity]: 10-300t/h

[Scope of application]: Metallurgical, chemical, building materials, electric power, transportation and other industrial sectors.

[Product introduction]:Impact crusher is named according to the working principle, that is, the use of impact crusher principle to crush the material, is a more fine than the jaw crusher crusher equipment, in mining stone production line is mainly used for fine crushing operations, and jaw crusher for cooperation.

National 24-hour sales hotline: 86-371-86106152

Product introduction

The impact crusher can process materials with a side length of 100-500 mm and a compressive strength of up to 350 MPa. It has a large crushing ratio and a cubic particle after crushing. Widely used in building materials, ore crushing, railways, highways, energy, transportation, energy, cement, mining, chemical and other industries for medium and fine materials. The size of the discharge material can be adjusted, and the crushing specifications are diversified.

impact crusher m1.png

Product Advantages

1. Impact crusher is more effective to deal with large wet materials and effectively prevent material clogging.

2, the impact crusher applies to a wider range of material hardness.

3, can be convenient and flexible adjustment of the discharge particle size, wide range of adjustment.

4, wearing parts wear small, high metal utilization rate.

impact crusher m2.jpg

operating principle

The impact crusher is a crushing machine that uses impact energy to break up materials. When the machine is working, the rotor rotates at a high speed under the driving of the motor. When the material enters the action area of the hammer, it collides with the hammer on the rotor, and then is thrown to the counter-attack device to break again, and then rebounds from the counter-attack. Returning to the hammer action zone, the process is repeated, and the process is repeated, and the material is broken into the counter-attack cavity from large to small, until the material is broken to the required particle size.

impact crusher9.jpg

Technical parameters



Model


Rotor Size
(mm)


Max.Input Size
(mm)


Output size
(mm)


Motor power
(kw)


Capacity
(t/h)


Weight
(kg)


PF_0807


850 × 700


300


≤ 25=85%


30


10-25


3500


PF_1007


1000 × 700


300


≤ 25=85%


37


15-30


6500


PF_1010


1000 × 1050


350


≤ 25=85%


55-75


50-80


12100


PF_1210


1250 × 1050


350


≤ 25=85%


110-132


70-120


14000


PF_1214


1250 × 1400


400


≤ 25=85%


132-160


130-180


18500


PF_1315


1300 × 1500


500


≤ 25=85%


160-200


180-260


23500


PF _ 1320


1320× 2000


500


≤ 25=85%


300-350


300-350


26500
