Leaching tank

Your position: HOME>PRODUCT>Mineral processing Item > Leaching tank

Leaching tank

Double impeller leaching adsorption tank is a equipment used for gold cyanidation leaching process and absorption, two transmission ways, one is the planet-cycloid reducer drive; the other is the plane envelope reducer drive.


National 24-hour sales hotline: 86-371-86106152

Product introduction

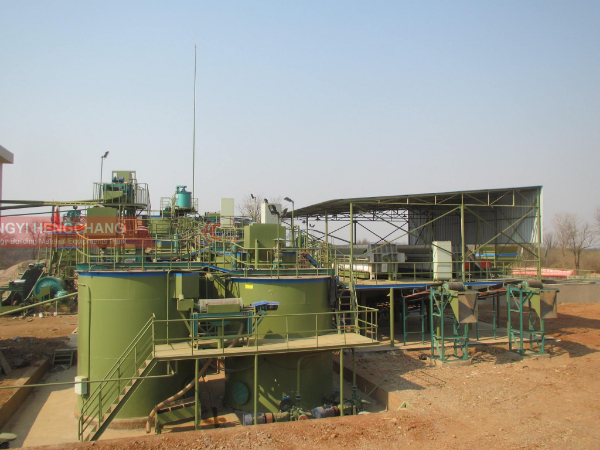

Double impeller leaching adsorption tank adopts two new type bigger impellers, low rotational speed,less power consumption, inside hollow shaft can suck the air into the tank,and improve the leaching environment. Gold ore leaching tank is widely used in gold and silver ore dressing plant for cyaniding treatment, CIP process, and carbon-in-leach work.

leaching tank m1.jpg

Product Advantages

1.Smooth movement, pulp mixing, less power consumption.
2.air after driving hollow shaft into the groove, and the blade agitation, air dispersion evenly.
3, compact structure, convenient maintenance.
4, to the bottom of the hollow shaft ventilation, air through it into the slot, uniform dispersion, small air bubbles.
5, the two new type of impeller, the impeller diameter, low speed, small power consumption, can reduce carbon wear.
6, stirring intensity, moderate groove pulp density, fineness distribution is consistent, can improve the rate of pass in and out of cyanide and charcoal adsorption rate.

leaching tank m2.jpg

operating principle

Double impeller leaching tank equipped with motor, cycloidal planetary gear speed reducer, bearing block and agitating shaft, is characterized by compact structure, little occupied space, and the agitating shaft equipped with a double impeller , from the top view the impeller rotating clockwise, each impeller composed of 4 blades, and the angle of the top blade and the below one is 45 degree. The compact air gets through the elbow pipe or the hollow shaft to the tank’s bottom, the raising air plays the role of mixing , at the same time the big bubble shattered by the impeller changing into small bubbles, in the end the pulp and air reaches fully mixing and sodium cyanide solution contacts with the pulp completely, thereby gets the better gold leaching result. The design of this device keeps the impeller low-speed moving, reducing the possibility of wearing or smashing the active carbon, so as to achieve high leaching rate, high absorption rate and collects more gold.

leaching tank m3.jpg

Technical parameters

Model

tank size  (mm)

volume (m3)

impeller dia. (mm)

impeller speed (r/min)

power (kw)

weight (kg)

SJ-2025

Φ2000×2500

6

900

52

2.2

2100

SJ-2531

Φ2500×3150

13.14

935

52

2.2

3100

SJ-3030

Φ3000×3000

18

1130

41

4

4150

SJ-3035

Φ3000×3500

21

1130

43

4

4400

SJ-3535

Φ3500×3500

30

1310

52

5.5

4900

SJ-3540

Φ3500×4000

32.7

1310

52

5.5

5200
