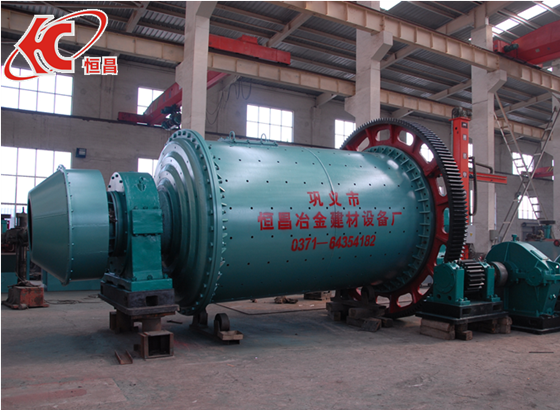

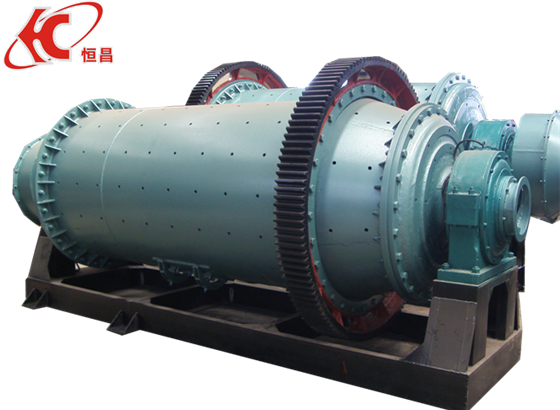

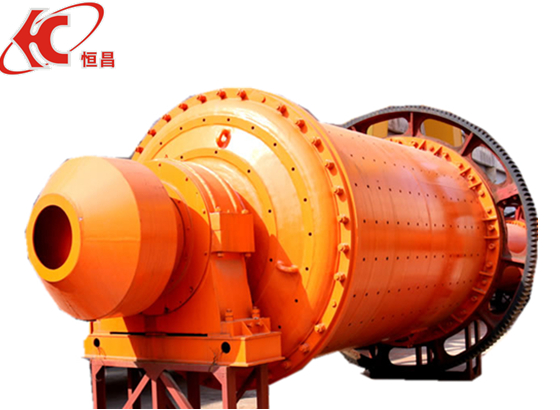

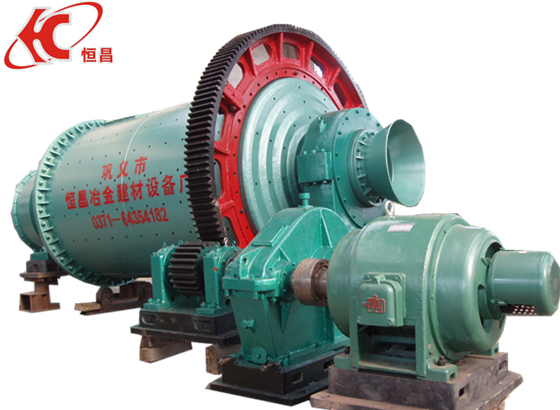

Product introduction
The ball mill is a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc,and the ball mill can grind various ores and other materials with dry type and wet type. There are two kinds of ball mill, grate type and overfall type due to different ways of discharging material.
Product Advantages
1. It is an efficient tool for grinding many materials into fine powder.
2. The ball mill is used to grind many kinds of ore and other materials, or to select ore
3. Ball mill is widely used in building material, and chemical industry.
4. There are two ways of grinding: dry way and wet way.
5. Ball mill can be divided into tabular type and flowing type according to different expelling mine
operating principle
The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through
the quill shaft uniformly. There are ladder liner and ripple liner and differentspecifications of steel balls in the chamber. The centrifugal force
caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged
through the discharging board thus the grinding process is finished.
Technical parameters
Model | Cylinder speed (r/min) | Ball loading (t) | Feeding Size (mm) | Output size (mm) | Capacity (t/h) | Power (kw) | Weight (t) |
MQZ900×1800 | 38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 15 | 4.2 |
MG900×3000 | 38 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 5.6 |
MQZ1200×2400 | 37 | 3.8 | ≤25 | 0.075-0.6 | 1.5-4.8 | 30 | 11.5 |
MG1200×3000 | 37 | 5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 12.8 |
MG1200×4500 | 37 | 6.6 | ≤25 | 0.074-0.4 | 1.6-5.8 | 45 | 13.8 |
MQZ1500×3000 | 29.7 | 8 | ≤25 | 0.074-0.4 | 2-5 | 75 | 16 |
MG1500×4500 | 29.7 | 12.5 | ≤25 | 0.074-0.4 | 3-6 | 90 | 22 |
MG1500×5700 | 29.7 | 15 | ≤25 | 0.074-0.4 | 3.5-6 | 110 | 24.7 |
MQZ1830×3000 | 25 | 11 | ≤25 | 0.074-0.4 | 4-10 | 130 | 28 |
MG1830×4500 | 25 | 15.8 | ≤25 | 0.074-0.4 | 4.5-12 | 155 | 32 |
MG1830×6400 | 24.1 | 23 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 36.5 |
MG1830×7000 | 24.1 | 24 | ≤25 | 0.074-0.4 | 7.5-17 | 245 | 39 |
MQZ2100×3000 | 24.6 | 20 | ≤25 | 0.074-0.4 | 7.5-36 | 180 | 40 |
MQZ2100×4500 | 24.6 | 22.5 | ≤25 | 0.074-0.4 | 7.5-40 | 210 | 48 |
MQZ2200×6500 | 21.7 | 25 | ≤25 | 0.074-0.4 | 10-12 | 380 | 52 |
MQZ2200×7000 | 21.7 | 28 | ≤25 | 0.074-0.4 | 10-14 | 380 | 54 |
MQZ2200×7500 | 21.7 | 29 | ≤25 | 0.074-0.4 | 12-14 | 380 | 56 |
MQZ2400×10000 | 20.57 | 50 | ≤25 | 0.074-0.4 | 17-18 | 630 | 95 |
MQZ2400×11000 | 20.57 | 51.5 | ≤25 | 0.074-0.4 | 19-21 | 630 | 99.2 |
MQZ2400×13000 | 20.3 | 65 | ≤25 | 0.074-0.4 | 21-23 | 800 | 116 |
MQZ2600×11000 | 19.57 | 65 | ≤25 | 0.074-0.4 | 24-26 | 800 | 131 |
MQZ2600×13000 | 19.61 | 75 | ≤25 | 0.074-0.4 | 28-32 | 1000 | 149 |
MQZ3000×9000 | 18.34 | 78 | ≤25 | 0.074-0.4 | 28-32 | 1000 | 139 |
MQZ3000×11000 | 18.08 | 95 | ≤25 | 0.074-0.4 | 30-35 | 1250 | 143.5 |
MQZ3000×13000 | 18.08 | 108 | ≤25 | 0.074-0.4 | 33-37 | 1250 | 172.3 |
