Vibrating feeder_Stone crushing Item

Product introduction
Product Advantages
operating principle
Technical parameters

Product introduction

Vibrating Feeder can continuously and evenly feed material, classify and screen materials in advance which benefits the system with high and stable yields and safe operation. The Vibratory Feeder facilitates materials classification, improves the system efficiency, saves space and power energy, which is widely used in artificial sand making system, mining, building material , chemical industry, metallurgy, water conservancy and other industries.

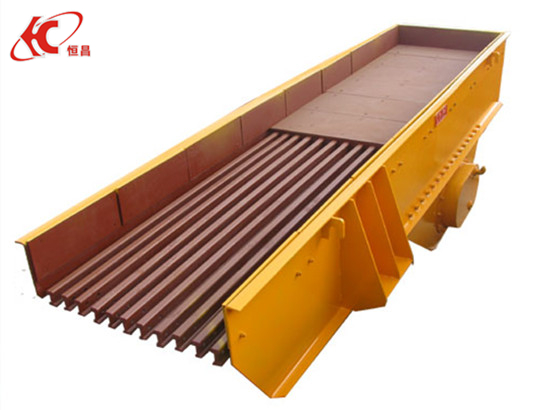

vibrating feeder m1.jpg

Product Advantages

1. Stable vibration, reliable working, long service life
2. Can adjust exciting force, can change and control flow at any time , convenient adjustment

3. low noise, small power consumption, good regulation performance, no flow

4. Simple structure, convenient installation, light weight, small size, convenient maintenance, when closed the fuselage structure is used to prevent dust pollution.

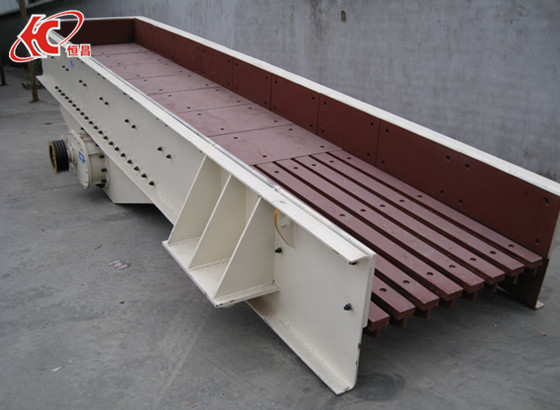

vibrating feeder m2_副本.png

operating principle

The vibrating feeder uses the eccentric mass in the vibrator to generate centrifugal force, so that the moving part of the sieve box, the vibrator and the like are forced to be continuous circular or approximately circular motion. The vibrating feeder is composed of a feeding trough body, a vibration exciter, a spring bearing, a transmission device and the like. The vibration source of the tank vibration feeding is the vibration exciter. The vibration exciter is composed of two eccentric shafts (main and passive) and a gear pair. The motor drives the driving shaft through the V-belt, and the gear on the driving shaft meshes with the passive shaft. Rotating, the main and passive shafts rotate at the same time, so that the tank body vibrates, so that the material continuously flows to achieve the purpose of conveying materials.

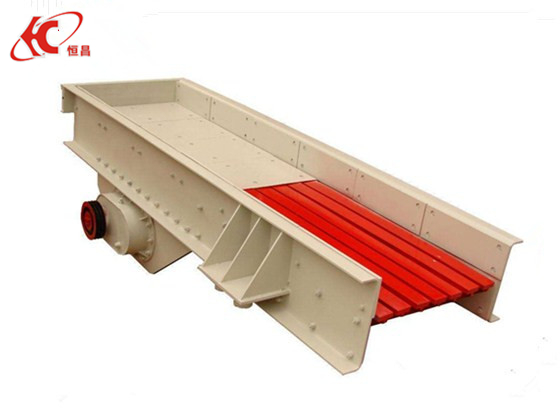

vibrating feeder m3.png

Technical parameters

Model	Funnel Size (mm×mm)	Max.Input Size(mm)	Capacity (t/h)	Motor Power (kw)	Weight (kg)	Dimensions (mm)
GZD-800×3000	800×3000	400	80-120	2.2	3195	3110×1800×1600
GZD-960×3800	960×3800	500	120-210	2.2×2	3375	3850×1950×1630
GZD-1100×4200	1100×4200	580	200-430	3.7×2	4400	4400×2050×1660
GZD-1100×4900	1100×4900	580	280-500	5.5×2	4675	5200×2050×1700
GZD-1300×5200	1300×5200	650	450-600	7.5×2	5400	5200×2350×1750
ZSW-950×3800	950×3800	500	96-160	11	4100	3882×2224×2121
ZSW-1100×4200	1100×4200	580	120-240	15	4745	4310×2500×1365
ZSW-1100×4900	1100×4900	580	120-280	15	5420	4957×2500×1365
ZSW-1100×5900	1100×5900	630	160-350	22	6100	6000×2500×2150
ZSW-1300×5900	1300×5900	630	250-400	37	6300	6000×2700×2150
